SAVEBUILD U230 Shielding Membrane for Shielding High Frequency EMF (per metre)
SAVEBUILD U230 Shielding Membrane for Shielding High Frequency EMF (per metre)
SAVEBUILD U230 Shielding Membrane for Shielding High Frequency EMF (per metre)
SAVEBUILD U230 Shielding Membrane for Shielding High Frequency EMF (per metre)
SAVEBUILD U230 Shielding Membrane for Shielding High Frequency EMF (per metre)

SAVEBUILD U230 Shielding Membrane for Shielding High Frequency EMF (per metre)

HK$200.00
HK$200.00
Sold Out

SAVEBUILD U230 Shielding Membrane (roll width 100 cm) is designed for shielding high frequency electromagnetic fields (EMF), and it can also be grounded to shield low frequency electric fields.


EMF attenuation: Single layer: 111 dB (99.99999999921%) at 1 GHz*

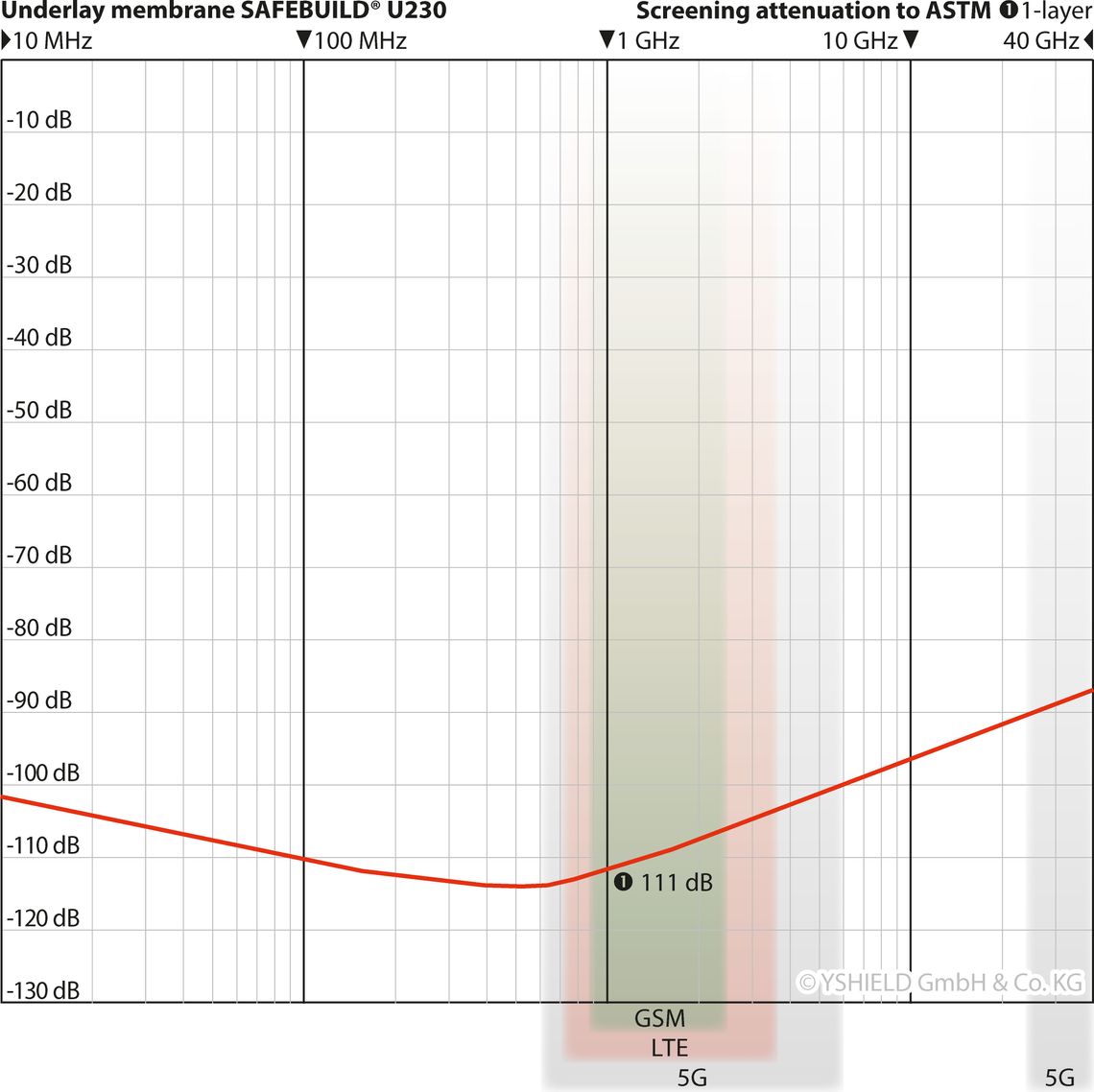

*For attenuation at other frequencies, please refer to the attenuation chart in one of our pictures.

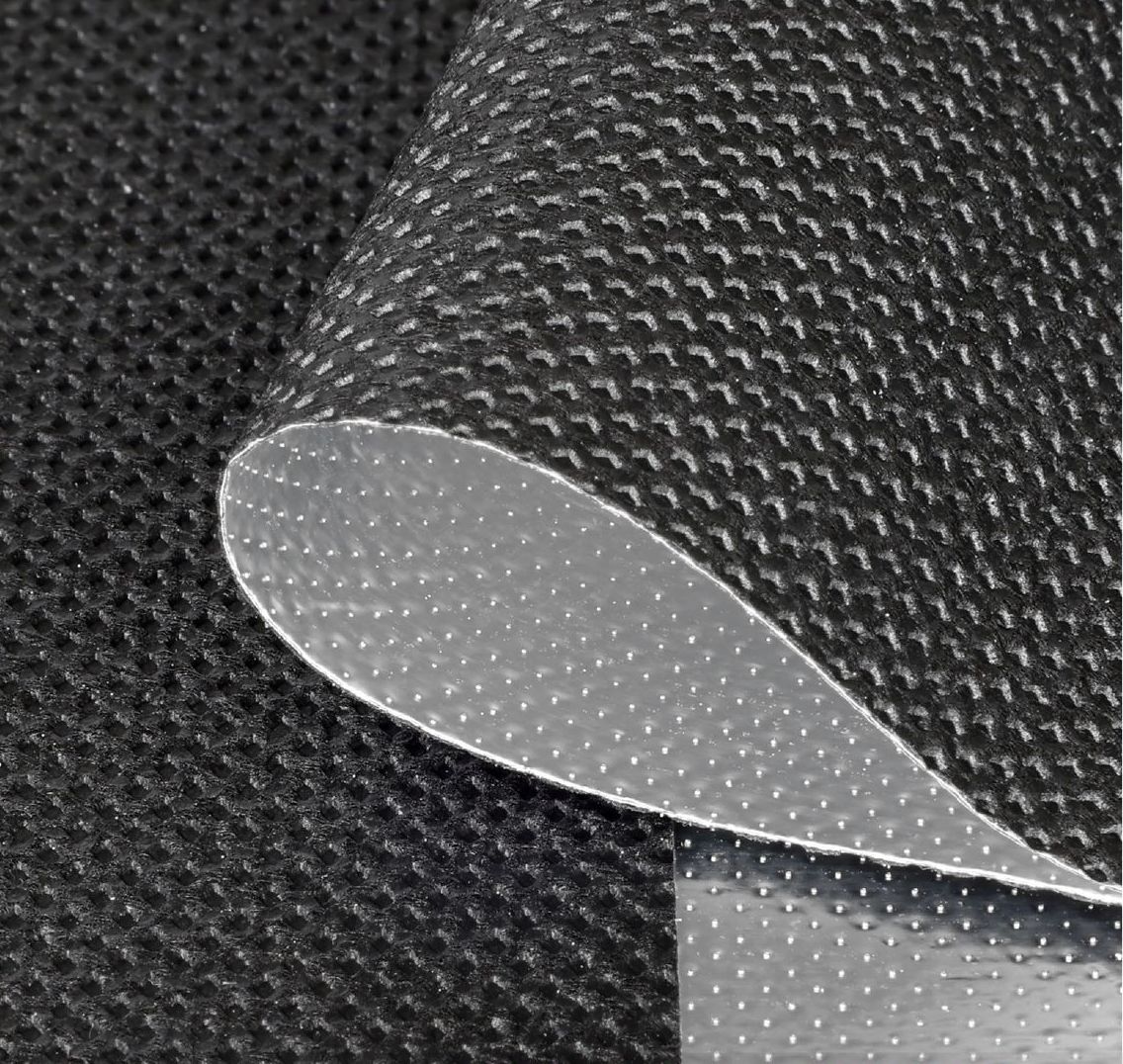

Features: SAVEBUILD U230 Shielding Membrane is a four-layer membrane (thickness 0.45 mm), composed of two layers of PP fleece, a layer of diffusion-open functional film and a layer of micro-needled aluminium foil. The black/silver membrane is highly permeable to water vapor.


Applications:
  • Can be used in exterior and interior areas for roofs, facades, and drywall construction.
  • The membrane must be applied overlapping, without a gap, and the holes for fastening must be as small as possible.
  • The aluminium side must be grounded.
  • GSX grounding strap must be bonded on the silver side.



This membrane can be purchased by the roll-metre (roll width is 100 cm). Please enter quantity of metres required (minimum quantity is one roll-metre).
