Grounding set GS3 type: GS3 plate only

The GS3 Grounding Set is designed to ground/earth EMF shielding paints such as Pro54 and HSF74 that have been applied to walls and ceilings.  Conductive layers that are grounded can shield low frequency electric fields.

This GS3 grounding set includes:

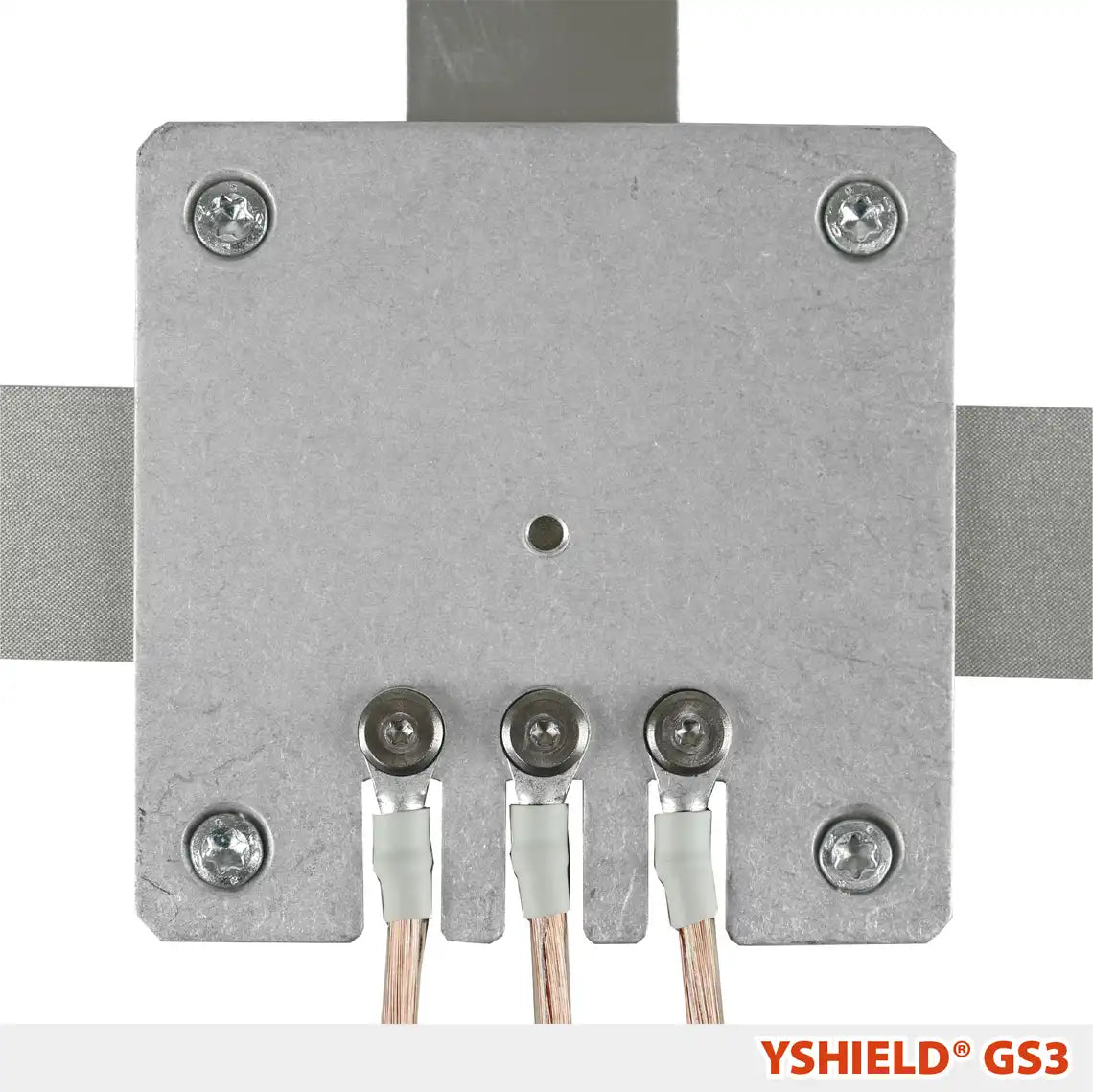

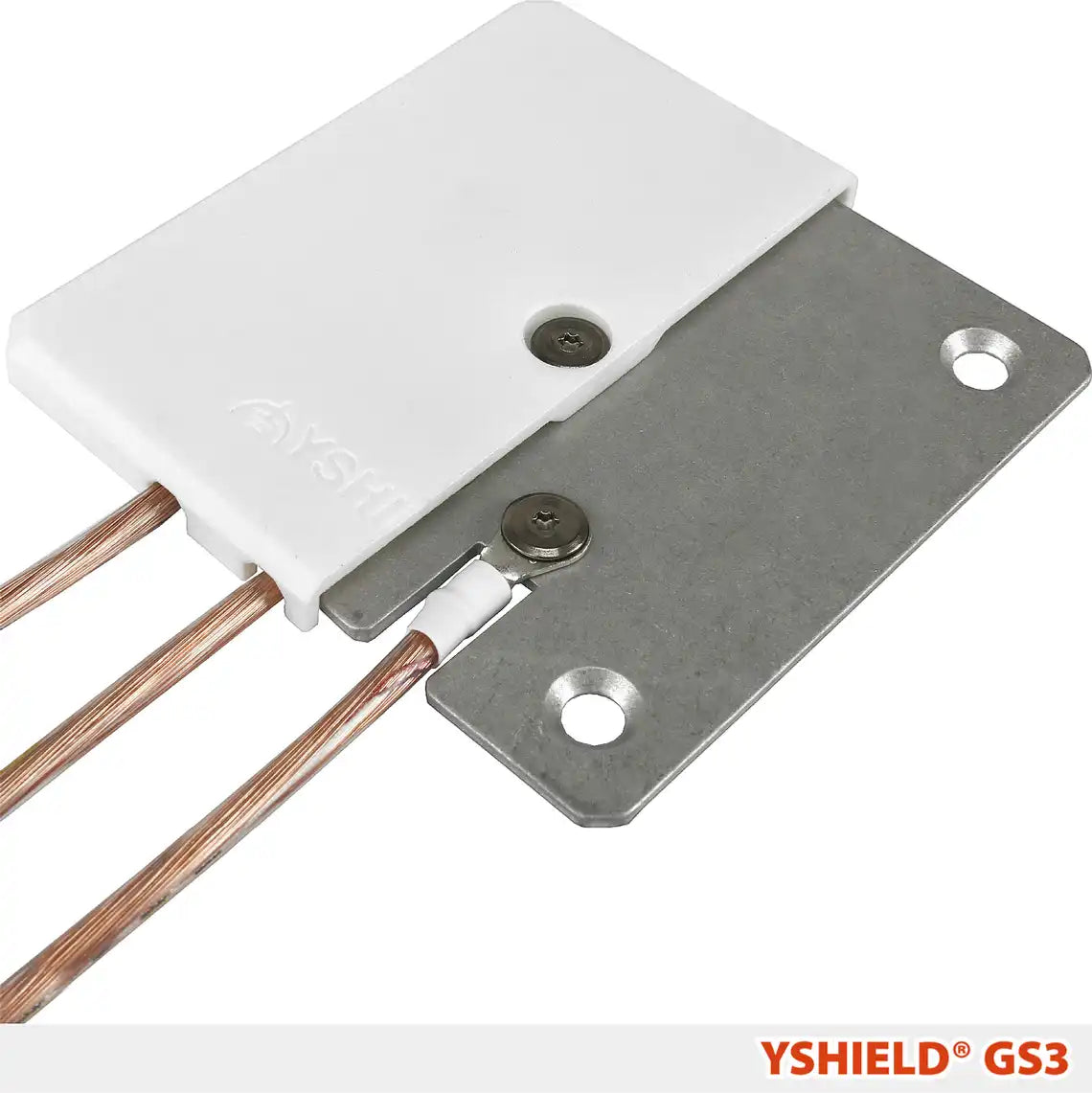

  • 1 GS3 grounding plate (75 x 75 x 2 mm) to be fixed directly to the wall.  Includes a white covering cap (80 x 80 x 6 mm), and all necessary screws, discs, dowels, cable lugs and a screwing tool with Torx®-Bits.

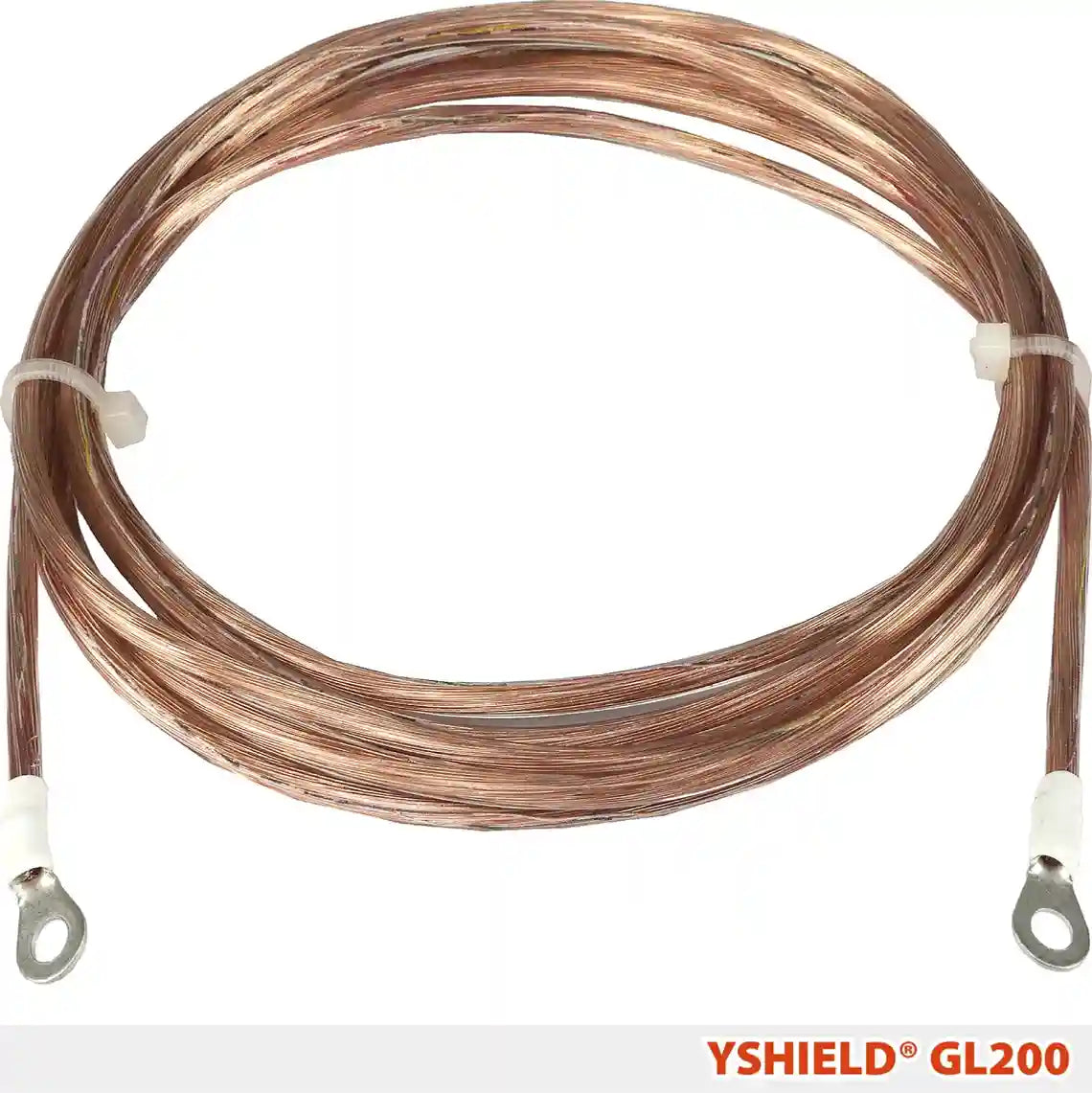

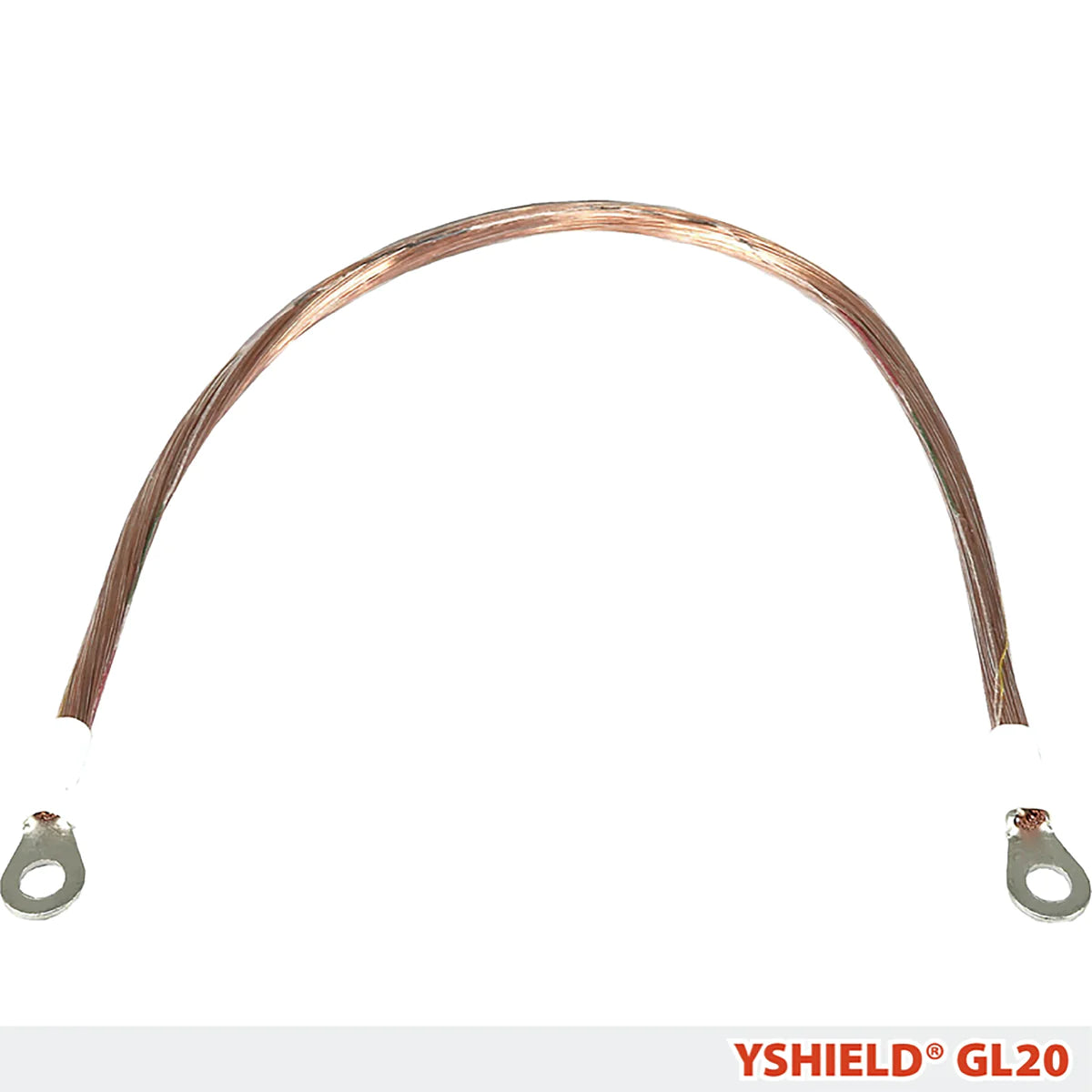

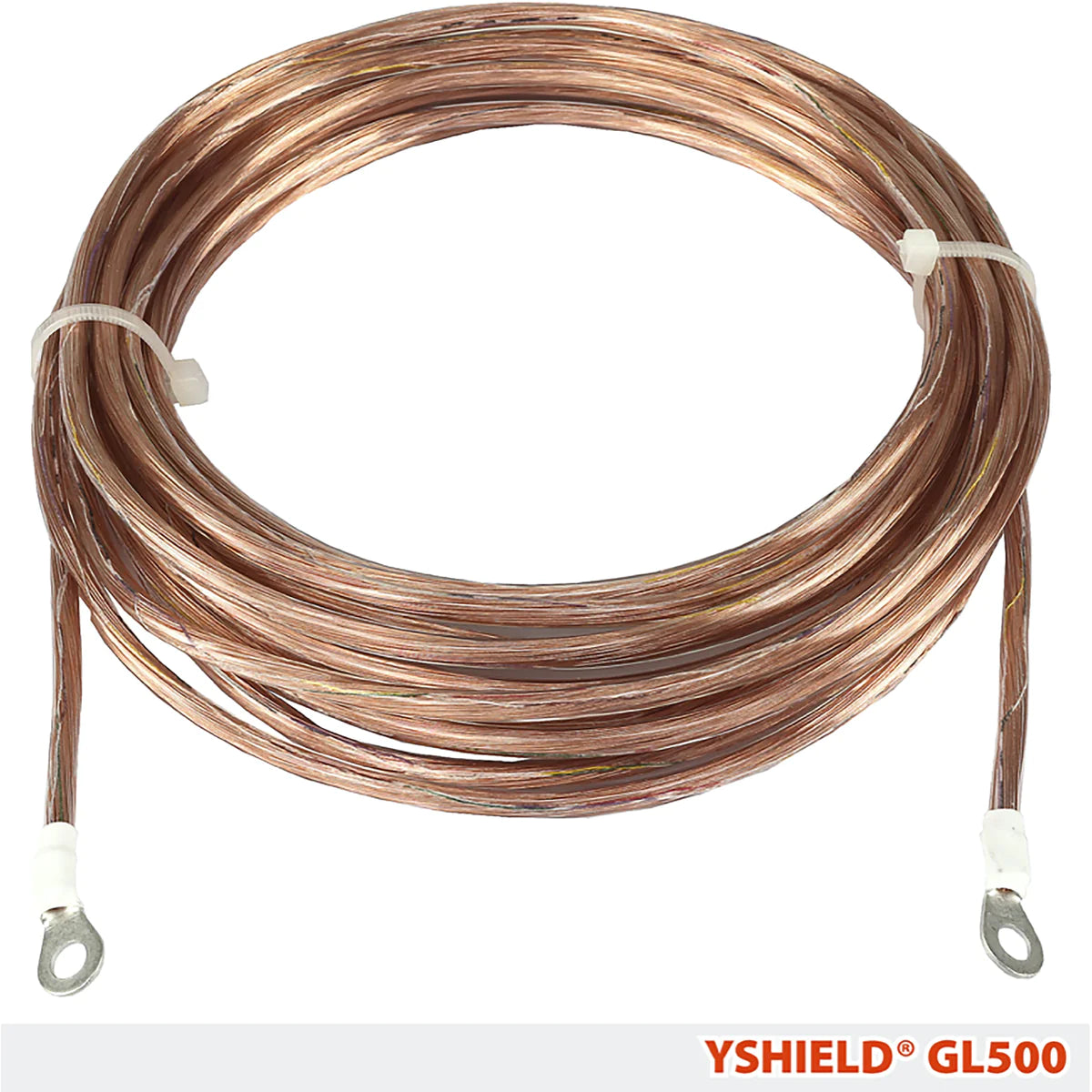

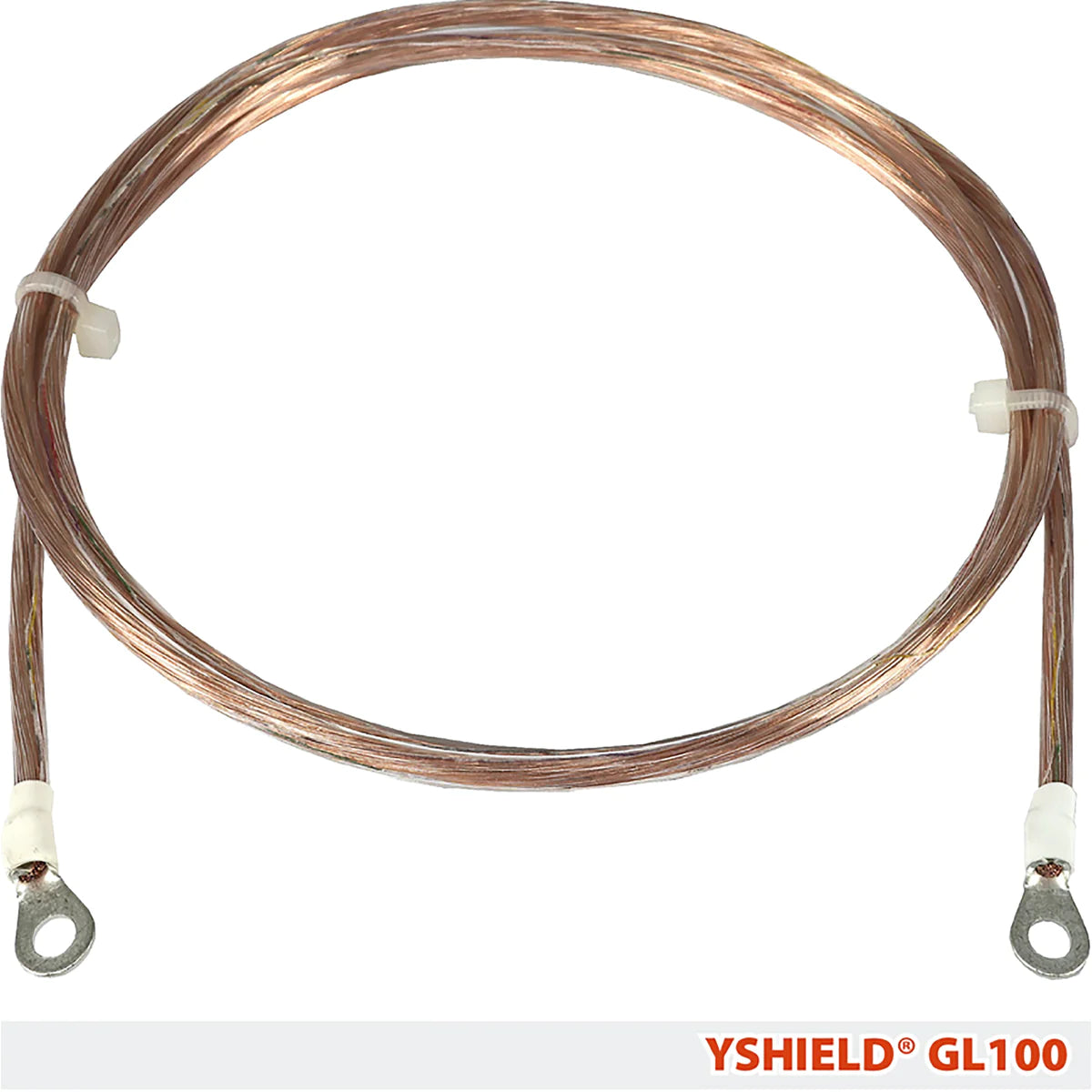

  • 1 GL grounding wire (2.5 mm²) with crimped cable lugs and shrink hose on both ends. This wire is available in four lengths (20 cm, 1 metre, 2 metres, and 5 metres) to connect the GCS plate with the GPG grounding plug.  Please select the wire length at check-out.


Recommended parts:

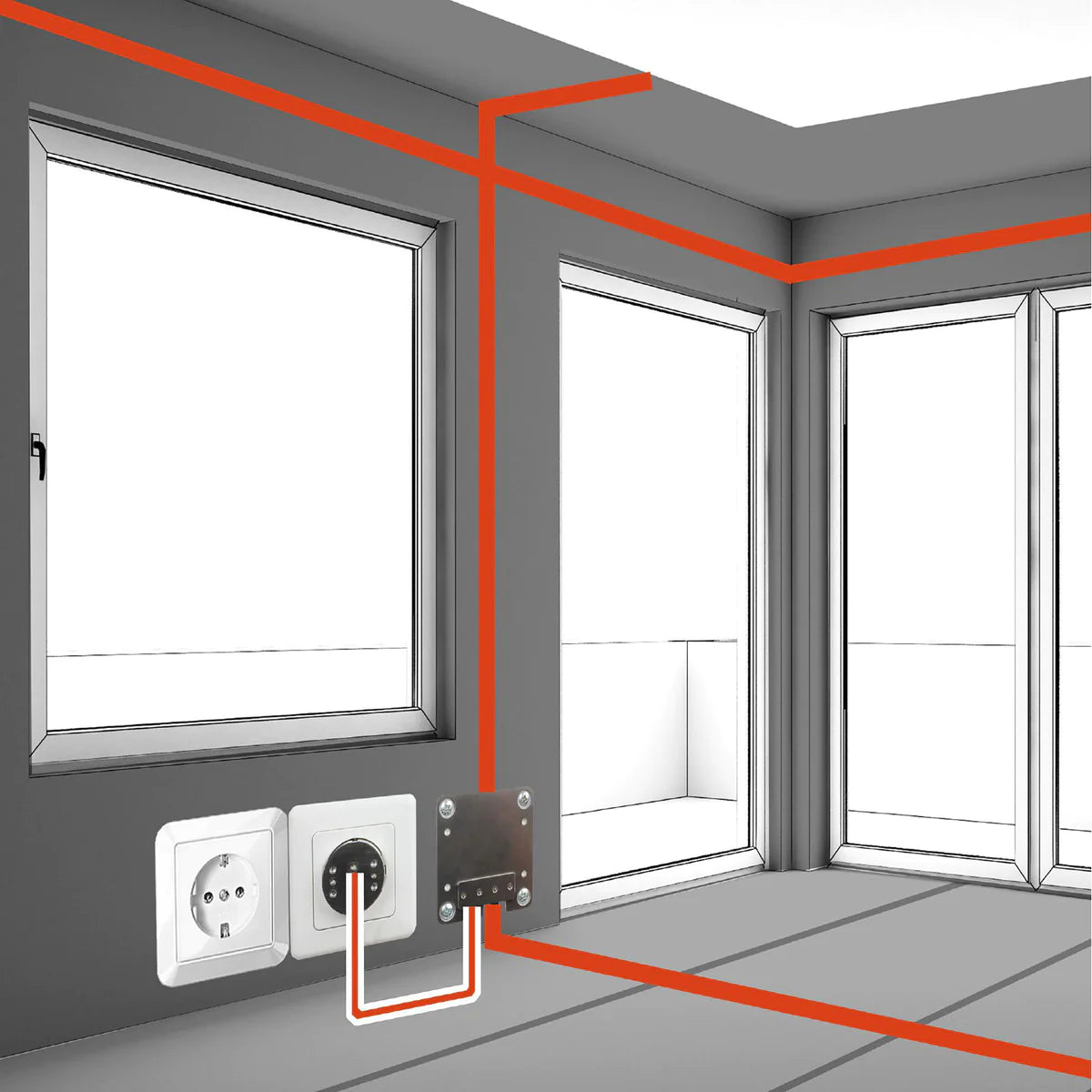

  • Before painting, GSX10 conductive tape should be installed across the wall and under the GS3 grounding plate to ensure adequate grounding over the shielding surface. GSX10 tape is available in 10 metre rolls on this website.


Notes on grounding sets:

  • The connection of a shielding material to ground is for equipotential bonding only, to allow shielding of low frequency electric fields.  The grounding sets offered on this website are not intended to function as electrical safety devices.
  • To shield low frequency electric fields properly, the shielding material must be connected with (preferably) less than 10 Ohms resistance to a reliable ground/earth source, such as the potential earth wire in a power socket.
  • For safety, your home electrical system should also have a functioning earth leakage circuit breaker of less than 30 mA installed (also known as a GFCI or RCD or ALCI).  Please contact a licensed electrician if you are not sure about the condition of your home's electrical system.
